Bow Roll

bow roll

[tabs class=”yourcustomclass”]
[tab title=”Standard Features” active=”active”]

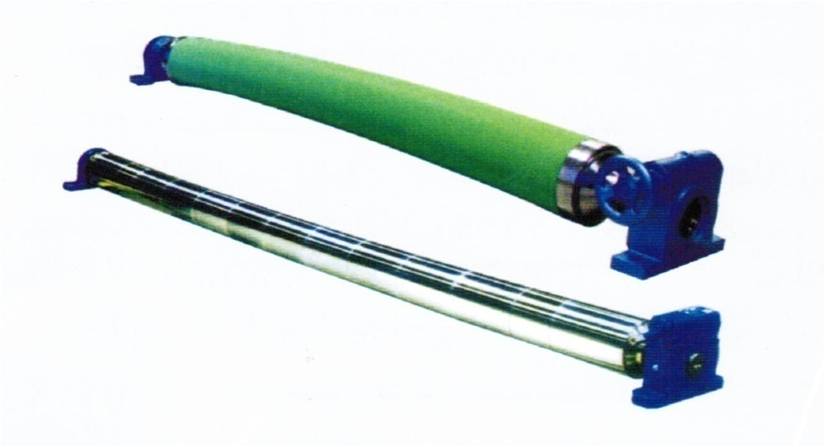

Bow Roll

We are superior and leading Manufacturer, exporter, and Supplier different types of Bow Rolls, Banana Roller, Metal Bow Roll, Metal Expander Roll, Salt Expander Roll, Metal Banana Expander Roll, 3 Curve Bar Expander Roll, Industrial Roller and more on custom size. Wide range of quality in Bow Roll for various types of Industry specific requirement. Bow Rolls for Textile and Tyre Cord Industry with desired requirement. Tyre-Cord & Technical Textiles Machinery, Textile Processing Machinery, Paper Industries Machinery, Flexible Packaging & Converting Machinery.

Sizes: Diameter up to 300 mm

Length: up to 8000 mm

  • Single Acting Bowed Roll
  • Double Acting Bowed Roll

The Performance of our Rubber Roller, Banana Roller depends upon the following points:

  • Wrap angle
  • Lead-in & Lead-out distance
  • Position of bow (Adjustable)

In this, 3:1 (lead-in: lead-out) ratio is considered to be the perfect. The best results are attained when Bow Roll is perpendicular to the web direction.

Advantages of our Bow Rolls are:

  • Control Slack Edges
  • Remove wrinkles
  • Separate slit webs on winder
  • Eliminate baggy center
  • Try to even out lateral tension across the web width

[/tab]
[tab title=”Technical Specification”]

  • Rubber Sleeve Covered. (High Quality Synthetic Nitride Sleeve).
  • Metal Expander with hard chrome plated surface for high speed application.
  • Vary Bow Expander Roller.

[/tab]
[tab title=”Video”]

[/tab]
[/tabs]
